XCC-C-SQ-PDS4PLUS

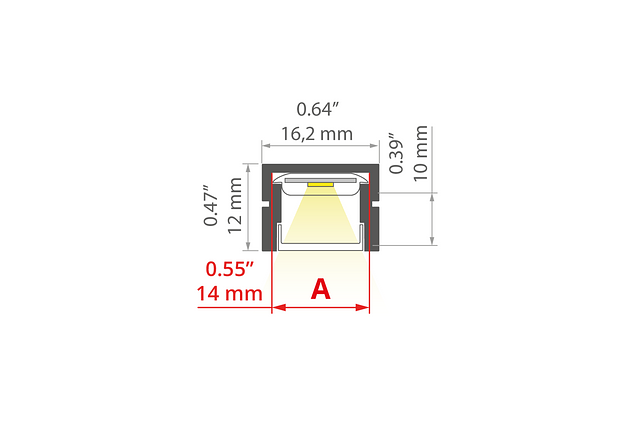

PDS-4-PLUS-3.pngXCC-C-SQ-PDS4PLUS
Square Series
Suitable for all Applications - Engineered to specify a single extrusion for main, functional, and decorative applications without compromising lighting performance.
- Comprehensive Tape Compatibility — Compatible with wide range of LED tape light due to its 11.2mm channel width from static white, dim-to-warm, and dynamic lighting.
- Robust Construction – Superior design with excellent thermal dissipation allows support for high-load and high-output LED tape light.
- Bendable to Shape — Create curves and shapes with its bending radius of 180mm inward, 200mm outward, and 500mm downwards.
- Flexible Installation — Surface or suspended via dedicated brackets, screws, adhesive with easy snap-in/snap-out covers and end cap accessories.
- Applications — Cove/perimeter, accent, decorative architectural, or main functional lighting, suitable in commercial, retail, residential, hospitality, and entertainment settings.
Resources
Color / Finish
- Black
- Silver Anodized
- White
Listings
- CE
- cETLus
Mounting
- Surface
- Suspended
Ratings & Compliance
- IP20
- IP67
- RoHS
