XCC-C-SP-PULA
PULA-3.pngXCC-C-SP-PULA
Specialty Series

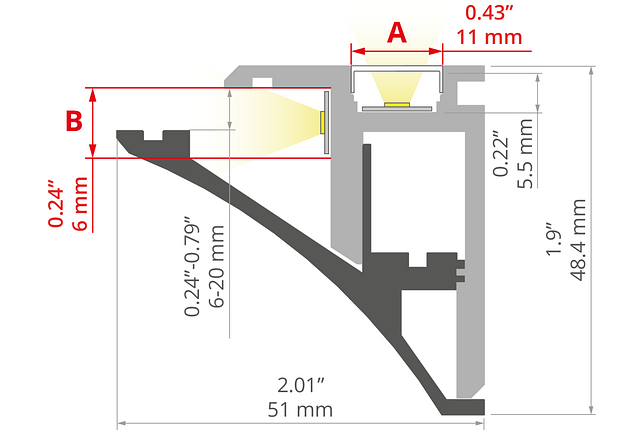

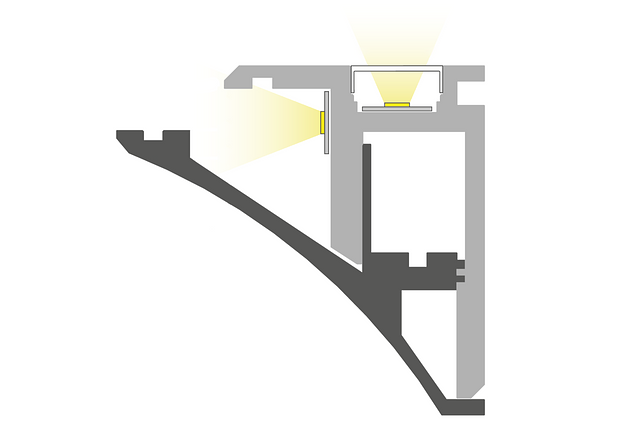

Shelving Illumination - This specialty extrusion supports and lights up the shelf — a single anodized aluminum profile that holds either see through glass/plexiglass or solid panels up to 20mm thick while provide soft illumination across the shelf and the wall.
- 2-in-1 Shelving and Lighting Profile — eliminates need of separate shelving brackets and light channels.
- Wide range of shelving panels – Supports thickness between 6-20mm panels, it handles real display weight with a max load of 5kg per 30cm of length
- Multiple covers – Choose from satin, frosted, or clear lens to provide desired light quality tuned to the application.
- Silver anodized aluminum — Robust aluminum construction with smooth, architectural-grade finish.
- Applications — retail display, hospitality back-bar shelving, residential built-ins, and architectural floating shelves.
Resources
Color / Finish
- Silver Anodized
Listings
- CE
- cETLus
Mounting
- Cabinet
Ratings & Compliance
- IP20
- RoHS
